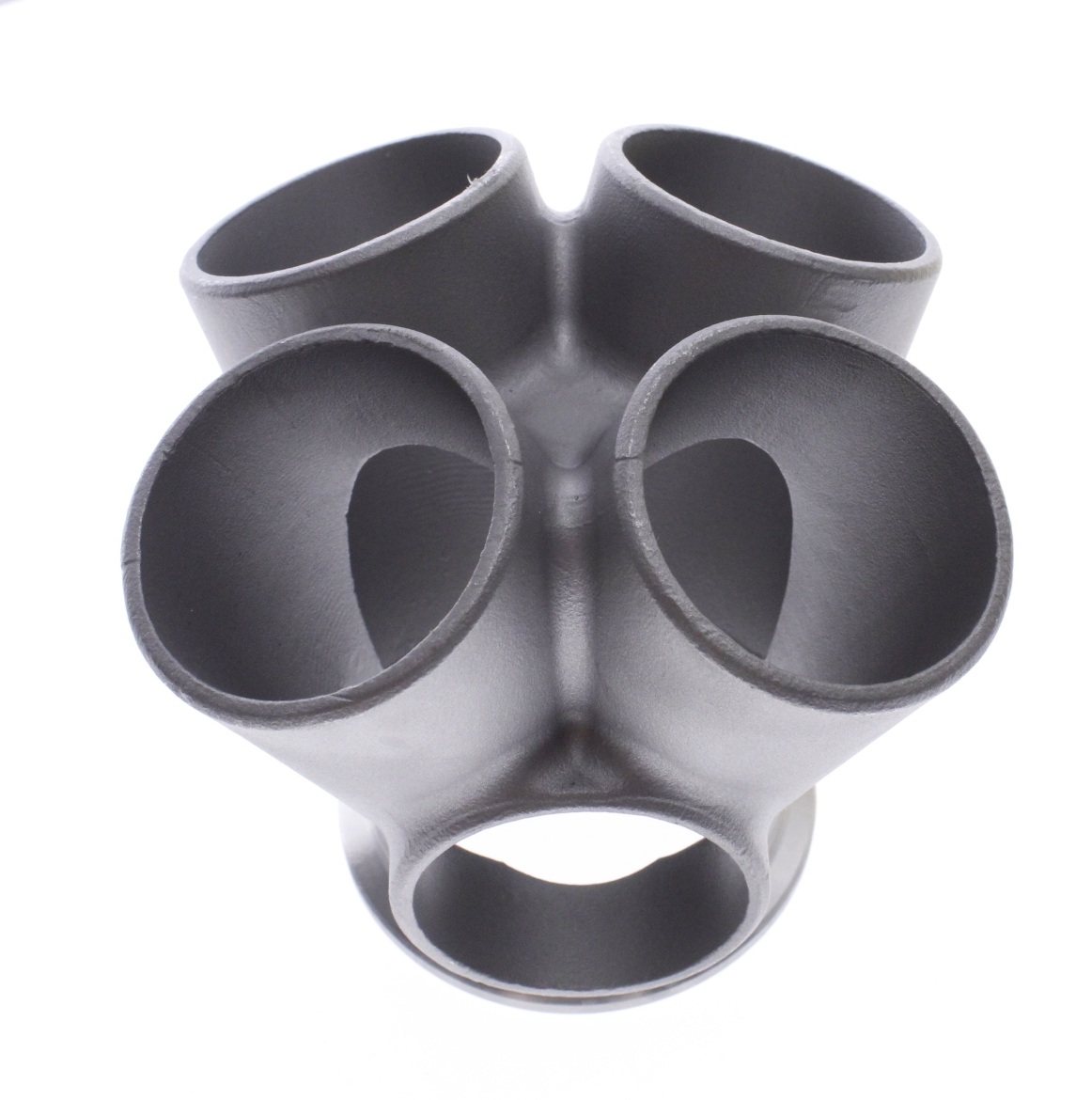

V-Band stainless steel collector for Garrett GTX / G25 / G30 - With 44mm Wastegate port

4-Cyl. V-Band Collector with 44mm Wastegate Port

4-cylinder manifolds and turbocharger with non divided (single-scroll) V-Band flange turbine housing and external 44mm. wastegate. for example V-Band inlet turbine housings for Garrett GT / GTX / GTX / GEN1 and GEN2 turbos:
Garrett GTX29 GEN I
Garrett GTX3071 GEN I and Gen II
Garrett GTX3076 GEN I and Gen II
Garrett GTX3576 GEN I and Gen II
Garrett GTX3582 GEN I and Gen II

Garrett G25-550
Garrett G25-660

Garrett G30-660
Garrett G30-770
Garrett G30-900

Garrett G35-900
Garrett G35-1050

Technical data:
Diameter WG-port pipe: approx. 42.4mm inside. 48mm outside
Inside diameter collector pipes: approx. 42,1mm
Outer diameter collector pipes: approx. 48,5mm
Length Collector: approx. 98mm (largest passage)
Outer diameter collector: approx. 123mm (widest section)
