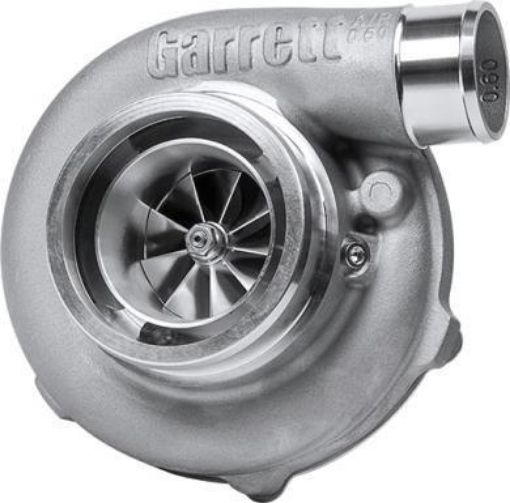

Garrett GTX3576R GEN II 856801-5046S 400-750PS T3 1.06 A / R V-Band Kullager Keramisk kullager.

450 - 850 hk

2,0L - 4,5L

Turbo-laddare delnummer diagram
Kompressorturbin
Super Core Reference Data Inducer Exducer Trim A / R Inducer Exducer Trim
GTX3582R Standardrotation 66mm 82mm 64 0,70 68mm 62mm 84
GTX3582R Reverse Rotation 66mm 82mm 64 0,70 68mm 62mm 84

Anmärkningar: Monteringssats PN Super Core PN turbinpaket PN A / R Inloppsuttag Avfallsdelat
Monteringssats PN inkluderar Super Core och Turbin Kit 856801-5069S 851154-5004S 740902-0012 0,63 T3 V-Band Free Float N
856801-5068S 851154-5004S 740902-0011 0,82 T3 V-Band Free Float N
856801-5067S 851154-5004S 740902-0010 1,06 T3 V-Band Free Float N
856801-5072S 851154-5004S 740902-0018 0,63 T4 V-Band Free Float N
856801-5071S 851154-5004S 740902-0017 0,82 T4 V-Band Free Float N
856801-5070S 851154-5004S 740902-0016 1,06 T4 V-Band Free Float N
856801-5081S 851154-5004S 740902-0033 0,61 V-Band V-Band Free Float N
856801-5080S 851154-5004S 740902-0032 0,83 V-Band V-Band Free Float N
856801-5079S 851154-5004S 740902-0031 1,01 V-Band V-Band Free Float N

Reverse Rotation Configurtation 856803-5004S 844626-5004S 740902-0056 0,61 V-Band V-Band Free Float N
856803-5005S 844626-5004S 740902-0057 0,83 V-Band V-Band Free Float N
856803-5006S 844626-5004S 740902-0058 1,01 V-Band V-Band Free Float N
