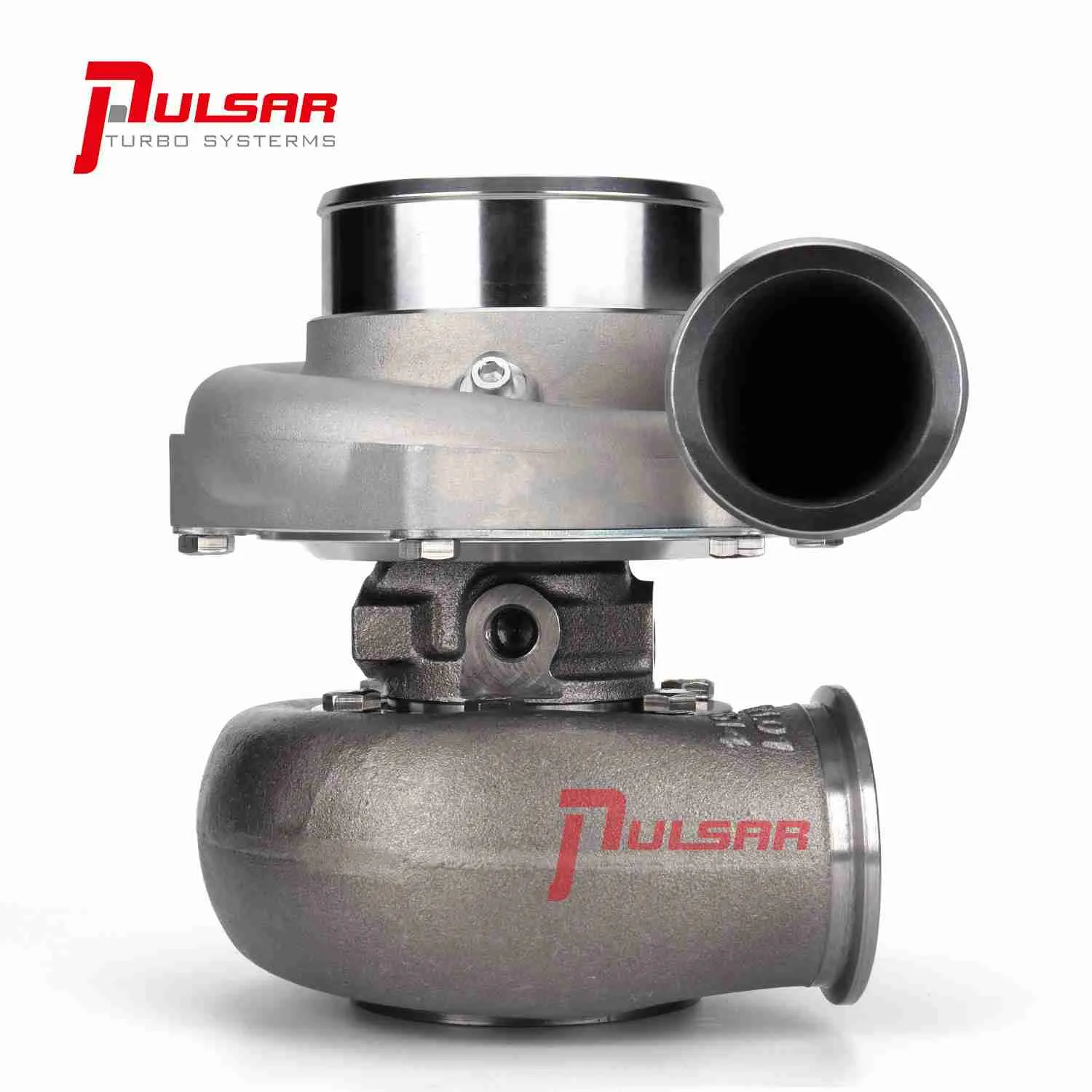

PSR3582 Gen2 Dual Ball Bearing Turbocharger

PSR3582 Gen2 Dual Ball Bearing Turbocharger

Dual Ceramic Ball Bearing System

10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

Inconel 713c Gen2 9 Blade Turbine Wheel

Gen2 Cover Integrated with the Speed Sensor Port

0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet etc. turbine housings in option

V-Band Flange kit(s) for the exhaust housing included

Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP

Horsepower rate: 450-900, Engine displacement range: 2.0L-4.5L

Compressor Wheel: 66*82mm

Turbine Wheel: 68*62mm

Compressor Inlet: 4.0 Hose

Compressor Outlet: 2.5 Hose

Turbine Inlet: T3, T4, or 2.5″ V-Band

Turbine Outlet: 3″ V-Band (3.55″OD)

Oil Feed: -4 AN connect to the Oil Restrictor

Oil Drain: Std T3 Flange

Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
